STEEP SLOPE STABILIZATION
Safe Harbor uses natural systems to stabilize steep, very steep slopes and eroding coastal bluffs. We have developed innovative techniques (low impact, low profile, low maintenance and low cost) to re-establish PERFORMANCE OF stability, STORM WATER MANAGEMENT AND HABITAT.
Click on the link below if you want a copy of our publication, revised, 2015. Safe Harbor Environmental Education Publications are free.
Site specificity will play a role in developing alternatives analysis for specific project locations. Our principles and strategies are transferable from site to site but techniques and materials need to be site appropriate. Succesional biomass platforms need to be created. Over time, these will provide linkage to scale with adjacent habitat systems. We have found that "jumping" successional stages produces cost heavy, materials heavy and maintenance heavy projects with unnecessary survivability risks.
On Cape Cod, we have successfully used steep slope stabilization principles for sand/soil mix slopes of nearly 80 feet high. The Cape's slopes often reflect glacial compression of soil materials rather than the expected angle of repose for compositional materials.
Natural vegetation normally stabilize slopes. Lack of the root/stem/leaf surface system, due to anthropogenic or other causes, reduces stability and creates exponential wind/water erosion risks, not to mention secondary impacts from eventual deposition. Safe Harbor advocates "reverse terracing" or "in slope benching" to provide temporary retention and infiltration mitigation pending sustainable performance of the native vegetation system (usually 3 years).
STEEP SLOPE STABILIZATION
USING NATURAL SYSTEMS
A natural system solution should always be considered. Engineered structures may require higher financial commitments, with installation requiring mitigation and structures requiring maintenance.
STEEP SLOPE STABILIZATION
STEEP SLOPE RESULTS
STEEP SLOPE STABILIZATION
INSTRUCTIONS FOR USING OUR NATURAL SYSTEM
We believe the key to solving many environmental problems may often be found within the problem itself. Our natural, steep slope stabilization system incorporates storm water management, erosion control and revegetation. This system redirects gravitational energy towards a solution capable of maintaining zero discharge erformance standards. Indigenous stabilization systems protect habitat value, are inherently low impact, low cost, low profile and low maintenance. These are some recommendations to consider when designing your own system.

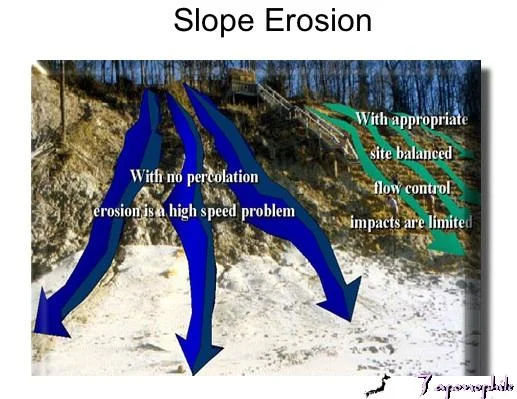

Creating properly spaced and designed terraces or benches, decreases storm water speed and enhances infiltration.
1. Assessment: study the dysfunctional existing dynamics of hydrology and habitat. All contributing causes and impacts of slope erosion should be studied. Focus on identifying primary cause dynamics. Study adjacent, performing areas.
2. Remove Contributing Flow: remove upslope sheet flow and point source contributions before they reach the slope crest. Use standard, low profile, low impact, groundwater infiltration systems such as swales or dry wells or drip lines. Ideally, these systems should remain 30-40' behind the crest.
3. Get Measurements: measure from the crest to the foot of the slope and calculate the slope angle. In cases of expansive slopes, work areas should be divided into 100 feet wide by 50 feet deep sections.
9. Apply Indigenous Mulch: a thin, one-inch layer of locally available mulch (semi-composted, indigenous plant material, including some twigs) should be spread over the compost layer. Mulch straw, not hay, could also contribute to this layer. This contributes to microorganism and insect biodiversity as well as providing a layer of root protection from extremes of temperature and moisture. Materials can be moved in 5 gallon buckets.
13. Do Not Overseed: more is not better and will result in nutrient depletion from over competition. This seed mix is only intended as an initial stabilizer. Thick grass performs poorly by encouraging runoff.
15. No Not Overload Top Cover: top cover protects survivability by providing additional thermal and moisture stability. Over covering blocks sunlight and may redirect rainwater.
16. Plantings: growing season specifics and adjacent habitat mix should guide plantings. Transplants have 50% survivability. Fruiting vegetation planted upslope encourages down slope reseeding.
17. Limited Watering: during the first growing season, limited watering may be necessary in times of drought, to support survivability. Once indigenous growth has been established, drought will be a factor in selecting sustainable vegetation. Hand or sprayer watering is less efficient than drip hose irrigation. Watering should take place in the morning to avoid mid day thermal shock.
18. Chemical Use: limited use of slow release, 5-5-5 fertilizer should be restricted to early and mid growing season only. Over nitrifying soil layers produces insect attracting vegetation and invites invasives that can destabilize habitat values. We do not normally use fertilizers and never use pesticides or herbicides.
21. Regulate Protection: upslope development, with potential alteration of grade elevations, devegetation and altered permeability (pavement, roofs), have the potential to alter the volume, direction and velocity of storm water. Pre-construction review through regulation is necessary to protect adjacent slopes. Wetland resources are often located down slope.
note: this publication is intended as a companion booklet, along with- Erosion Control and Storm Water Management: UnderstandingLow Impact Systems and Indigenous Habitat Restoration : Understanding Bio-Engineered VegetationSystems booklets.
A good general rule when working on steep slopes is to strictly control vertical access.
Layers of indigenous compost, mulch and pine needle/leaf litter are matched to soil horizon profiles on adjacent slope habitat. Sometimes we add a dusting of wood ash if the pH is too low. A measured layer of indigenous mulch will go on top.Indigenous soil profiles welcome indigenous vegetation and connect fragmented habitat.De-vegetation fragments habitat, altering predator/prey relationships. Fragmented habitat may be the single greatest threat to endangered species on Cape Cod.A very thin layer of straw is added directly on top of the indigenous mulch layer, providing temporary moisture absorption and structure. The straw is secured to the slope with stapled jute netting.The pine needle/leaf litter layer over the netting matches adjacent habitat and protects new roots from thermal spikes and moisture loss.The terraces are subtle and understated, tilted back into the slope so gravity will assist with infiltration instead of causing erosion. This system will jump start an otherwise lengthy time line for re-establishment of indigenous habitat. Indigenous vegetation on steep slopes creates a natural stabilization system. Natural re-seeding from adjacent habitat also contributes to stabilization. The few invasives will be discouraged by indigenous pH which limits nutrient availability. We leave invasives during the first growing season, removing them before seed, because we need as much root structure as we can get to enhance slope stability.When slopes are loamed and seeded without gravity breaks (inverted terraces), seeds and loam will end up like this example.
In this example, a steep slope with a wetland down slope, has been eroding due to contributing sheet flow from an upslope parking area.
Irregularities in surface topography are encouraged to create sub or micro habitats, increasing bio-diversity on the site.
Our Ocean and Bayside Bluff stabilization strategies are in the booklet and will be posted here in the near future.
